304 Stainless Steel Roller Bearing Drawer Slides

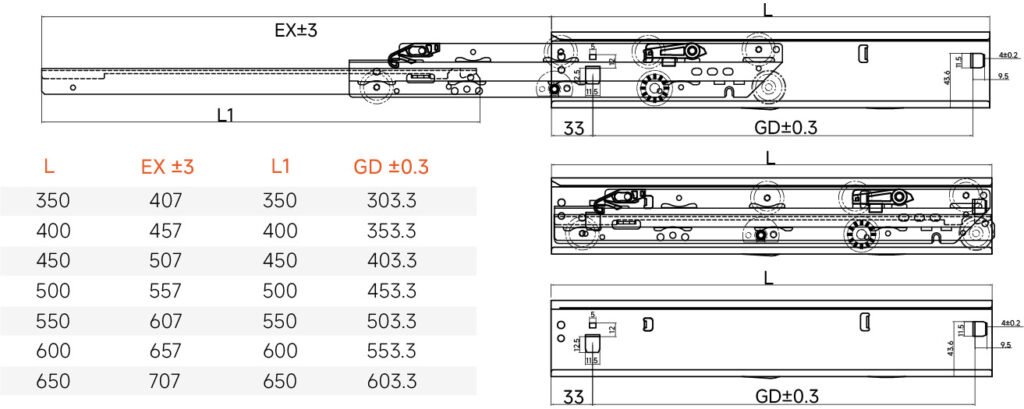

Roller Bearing Drawer Slides
- Feature: -40℃ ~ 80℃
- Size Range: 14″ to 26″
- Material: 304/201/441 Stainless Steel
- Installation Gap: 17±0.3mm
- Loading Capacity: 53KG
- Material Thickness: 1.5*2.0*1.5mm
- Level of Travel: Full Extension
If you need customization, please contact us (+86)18126638650 or email info@censohardware.com
Application industry

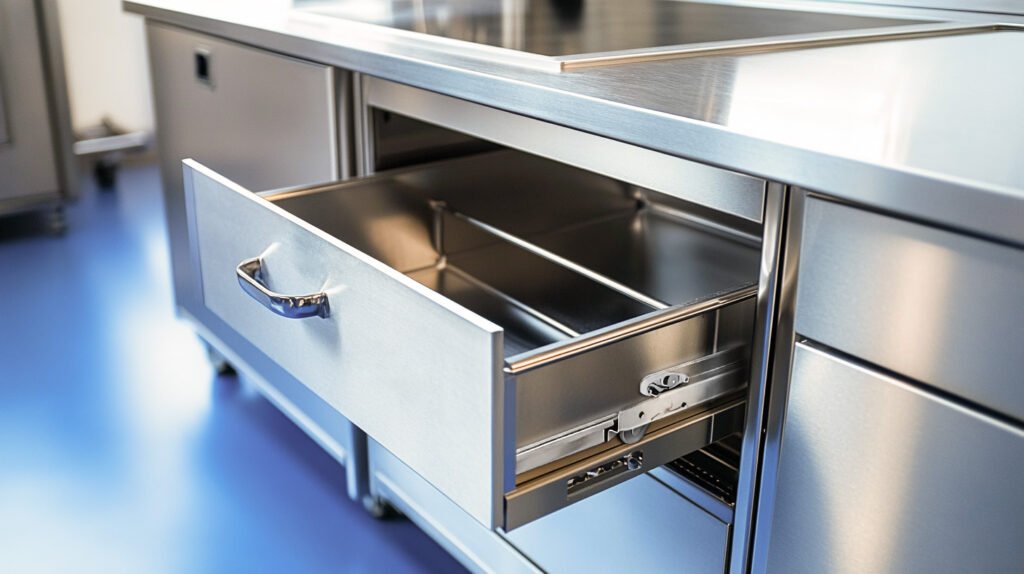

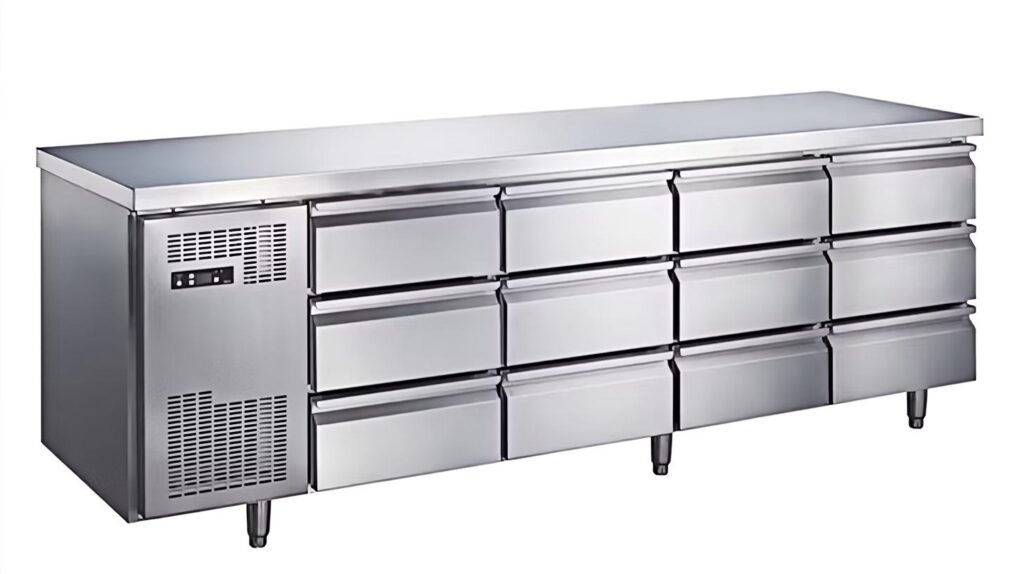

Refrigeration Systems Drawer Freezer Undercounter
The interior space of the Refrigeration system can be rationally utilized by adding drawers. Such a design makes the storage and retrieval of food more convenient and clear. However, since the drawer needs to be placed in a low-temperature environment, the drawer slide rails that support the drawer’s operation need to simultaneously meet the following requirements:
- The materials comply with food safety standards and will not contaminate food
- The pulling is smooth and not affected by the frosting of the Refrigeration system
- It can work in a low-temperature environment for a long time
CenSo Roller Bearing Drawer Slides Advantage
- The materials are mainly 304 stainless steel and 201 stainless steel, and their corrosion resistance is higher than that of 441 stainless steel
- It can support NSF certification to ensure compliance with food safety standards
- The roller design ensures smooth operation even when pulled out in low temperatures and frost
- Before leaving the factory, it undergoes 100,000 full-load (53kg) tests to ensure its service life during use
Why choose CenSo
- Excellent Technology: With 16 years of experience in the research and development, design and production of drawer slides, we ensure the quality of every link.
- Customized services: Our team of 20+ R&D engineers can provide customized support for your project that other brands cannot offer
- Continuous Service: The entire CenSo team is committed to being your best partner. We will provide follow-up technical support on slides to ensure that your project is worry-free.
- Quality Assurance: Our drawer slides will be tested for 100,000 pulls and pulls at full load and 48 hours of salt spray test. We will also add corresponding tests according to the slides of different applications
Custom Solution
CenSo can provide you with diverse customization services. You can freely combine within the customization categories we offer to fit your drawer freezer to the greatest extent.
Contact CenSo Custom
faq
What is a Roller Bearing Drawer Slide
A Roller Bearing Drawer Slide is a type of mechanism used to support drawers, allowing them to open and close smoothly. These slides use cylindrical rollers housed in tracks to provide linear motion with reduced friction. They are ideal for heavy-duty applications such as drawer freezers, offering quiet, stable, and reliable performance even under load and in low-temperature environments.
Roller Bearing Drawer Slides or Ball Bearing Drawer Slides?
While both types offer smooth sliding action, roller bearing slides are generally better for applications where quiet operation and resistance to debris or low temperatures is important—like in commercial or undercounter freezer drawers.
Ball bearing slides provide higher precision and are often used in office or residential furniture but may not perform as well in cold or humid environments.
304 vs. 201 vs. 441 Stainless Steel – Which is Best?
304 Stainless Steel: Best corrosion resistance, especially in humid or food-grade environments. Recommended for long-term durability in freezer applications.
201 Stainless Steel: Cost-effective alternative with lower corrosion resistance. Suitable for less demanding environments.
441 Stainless Steel: Offers good oxidation resistance and strength at high temperatures but is less common in drawer slide applications.
✅ Best choice for drawer freezers: 304 Stainless Steel, due to its superior rust resistance and hygienic properties.
Are Drawer Freezers Better?
Drawer freezers offer several advantages over traditional swing-door models:
Easier access and organization
Better ergonomic design
Less cold air escapes when opened
Ideal for undercounter and commercial use
For kitchens requiring efficient layout and quick access to frequently used frozen items, drawer freezers with high-quality drawer slides are an excellent choice.
Which Type of Freezer Is Most Efficient?
In terms of energy efficiency:
Chest freezers are generally most efficient due to better insulation and less cold air loss.
Drawer freezers, when equipped with well-sealed compartments and smooth-sliding drawer slides, can also be very efficient, especially in commercial settings.
For compact or undercounter use, a drawer freezer with 304 stainless steel roller bearing slides offers a great balance of efficiency, accessibility, and durability.
Can these roller bearing drawer slides be used in commercial kitchen or medical freezers?
Absolutely. 304 stainless steel roller bearing drawer slides are food-safe, easy to clean, and compliant with hygiene standards, making them perfect for use in:

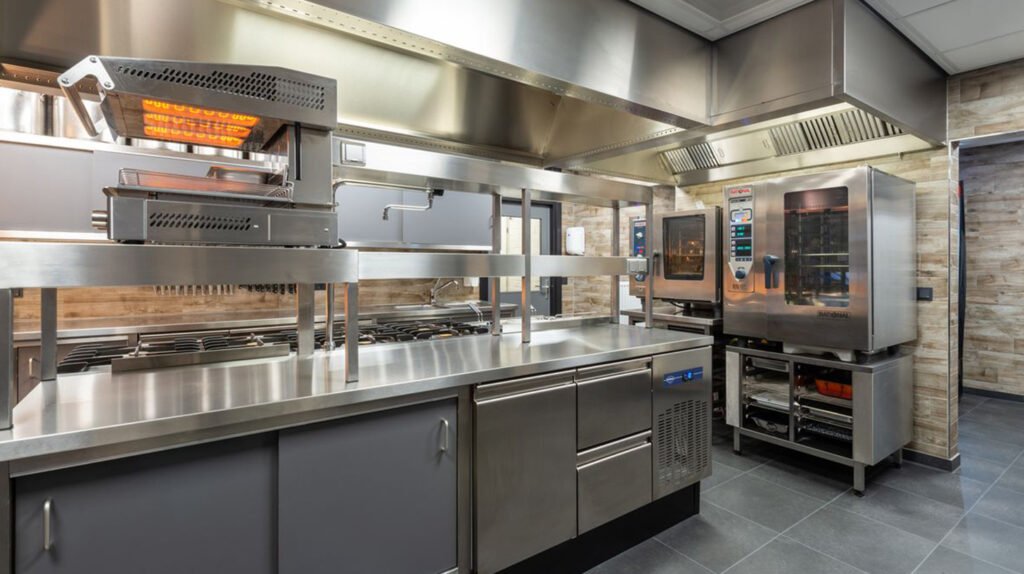

Commercial kitchens
Medical refrigeration
Laboratory freezers
